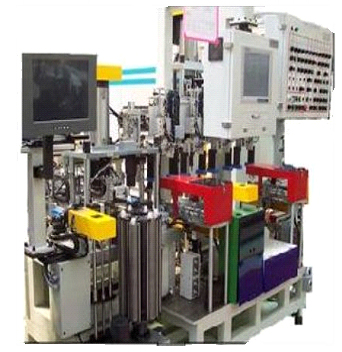

T/Wheel Indenting Machine


Function

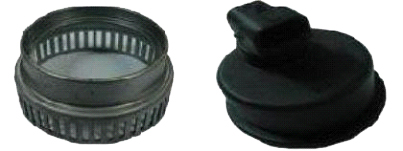

By using SERVO PRESS, T. Wheel & ABS sensors indentation and indentation to measure the height.
This machine is performed dynamically and then the part is divided into OK & NA
OK part shall be fed to the next machine and NA part shall be rejected into NA

1) SERVO PRESS force  : 5000㎏/㎠
2) Ovality <2㎛
3) Cycle time <14 sec


T/Wheel Indenting Machine T/Wheel Indenting Machine
