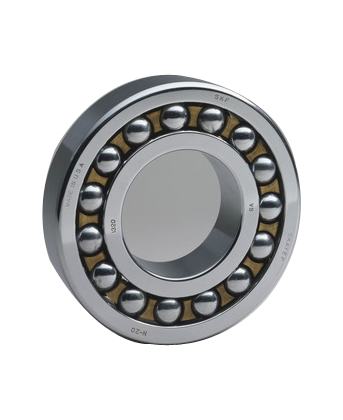

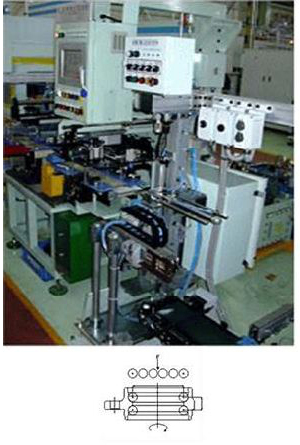

Bearing Outer Race Measuring Machine

Function
As a in line system, this is the machine for checking the O.D of bearing outer race. The measurement is performed dynamically and then the part is divide into OK & NA.
OK part shall be fed to the next machine and NA part shall be rejected into NA chute.

Accuracy
Ovality < 2㎛
• RaceTaper < 3㎛

Bearing Outer Race Measuring Machine Bearing Outer Race Measuring Machine
