AfM Technology GmbH is a solutions provider in the area of mobile measuring technology.
The specialty of the company lays in the calibration measurement and compensation of deviations of machine tools, coordinate measurement devices, robotic systems and other positioning equipment.
Hereby AfM rely on their vast metrological experience, state of the art technology and cooperation with reputable partners.
AfM offer their customers customer made solutions ranging from service, engineering support, software packages for the optimization of PLM- and Quality- processes, accessories for the 3D measuring technology, through to completely assembled systems.
The goal of AfM Technology is their international presence at all major markets of the machine-building industry and to offer their customers the highest professional competence and fastest possible reaction time.
We are pleased to inform you about the following AfM Technology products and themes. |
| |
| Your AfM Technology team |
AfM Worldwide Service Solutions – Increase of Accuracy for Machine Tools and Coordinate Measuring Machines (CMM) |
| • |
AfM Technology offers standard service, calibrations, adjustments and compensations for machine tools and CMM |
| |
 |
| • |

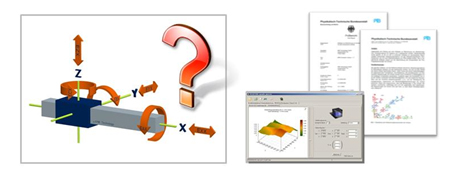

Increase the accuracy of your machine tool and coordinate measuring machine in shortest time up to 85% with the AfM Technology Service "Volumetric Compensation“ |
| • |
Already available for many CNC-Controllers on the market: |
| |
SIEMENS/ VCS (VCS A3, VCS A5, VCS A5 plus, VCS Rotary) HEIDENHAIN / KinematicsComp / KinematicsOpt / TCP_OPT FANUC / 3D Error Compensation / 3D Rotary Error Compensation FIDIA / VAC / HMS / HMS-HEC
FAGOR / FVC BOSCH MTX / VCP MAZAK / MATRIX2 |
| |
 |
|
| |
AfM Engineering – Professional support for the implementation of the volumetric compensation into CNC Controllers of machine tools or coordinate measuring machines |
| • |
Take advantage of our vast experience in the field of "Volumetric Compensation Systems“
by the implementation into your CMM or machine tool controller with the "AfM Engineering Package MaCo-
Online“ – the only one with correction / compensation algorithm, certified by the German PTB |
| |
 |
|
QPW – Cross-disciplinary Process Optimization |
| |
- |

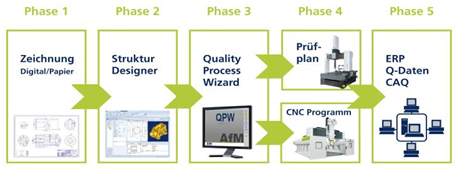

The tool for the automatized creation of programs for Coordinate Measuring Machines (CMM) |
| |
- |
Directly from the volumetric CAD model or from the 2D drawing |
| |
- |
Already available for many CAD systems: |
| • |
Pro/Engineer, PTC |
| • |
Catia V5, Dassault |
| • |
NX, Unigraphics / SIEMENS |
| • |
SOLID WORKS |
|
|
| |
| AfM Gauge-Check – The Automatized Gauge Calibration on a ZEISS CMM |
| - |
Fast and easy to operate |
| - |
No operator influence on the measuring result |
| - |
The calibration procedure is following the VDI / VDE / DGQ 2618 |
| - |
Automatized creation of the CNC programs for the CMM |
| - |
Integrated gauge / tolerance calculation |
| - |
Integrated gauge and artefact management |
| - |
Standard interface for the data transfer to other CAQ / QM/ SAP-systems |
|
| |
|
| |
AfM MP_DOC – documentation of CALYPSO®- measurement plans |

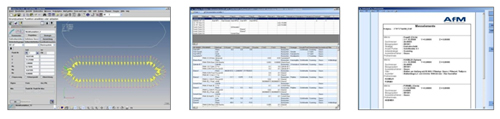

MP_DOC reads in complete CALYPSO® measurement plans and provides all the content relevant for measurement purpose in a clear Excel® or PDF table. |
- |
Conversion makes measurement program content universally usable in a legible format |
- |
Inspection and audit-compliant documentation of CALYPSO® test plans, inc. all measurement and evaluation strategies, filters and measurement points |
- |
Comparison of different program content |
- |
Checking any program content by means of user specific configuration options |
- |
Simple measurement coordination with customer and suppliers |
- |
Restoration of saved CALYPSO® measurement plans |
- |
Additional "digital documentation" option: Rapid production of complete documentation on CD / DVD |
|
| |
|
| |
AfM GERBER_CONVERT – Calypso® Fully automated generation of test plans for measurement of electronic plates |
Electronic plates are generally made based on data in what is known in GERBER format (layout data) and/or EXCELLON format (drill data). |

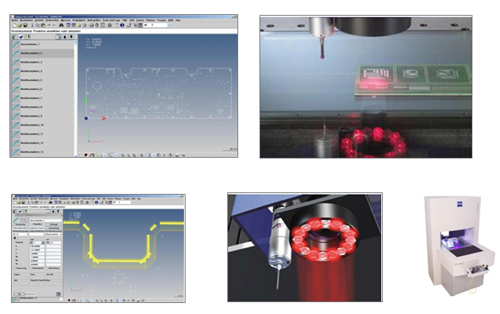

The GERBER_CONVERT module reads in the available data and visualises it in the form of a graphic and table of values. Based on the data loaded and the configuration settings, GERBER_CONVERT produces a fully automated, workable
CALYPSO® test plan for multi-sensor CMMs. |
| - |
Fast and easy to use software module |
| - |
GERBER_CONVERT generates a complete CALYPSO® measurement plan based on the settings. |
| - |
Individual adjustments can be made to the test plan generated |
| - |
Real time saving |
| - |
Optimum use of CALYPSO® measurement software |
| - |
Saved measurement and evaluation strategies minimize individual operator influence on measurement results. |
|
| |
|
| AfM ThermoStab – Accessories for LaserTRACER Measurements |
- |

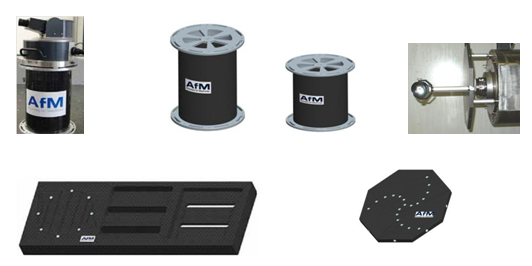

Variable, temperature- and vibration stable composite-fixtures for LaserTRACER and CatsEye mountings |
|
|
| |
Sale of LaserTRACER Systems for the volumetric calibration and compensation of machine tools and CMM |
- |
LaserTRACER Systems for sale and for rent (LaserTRACER und LaserTRACER MT, MultiTrace) |
- |
MultiTrace - Realtime 3D multilateration systems with sub-µm accuracy |
- |
LaserTRACER Training / Seminars at AfM Technology training centre Aalen or In-house at your plant |
- |
TRAC-CAL and TRAC-CHECK Seminars at AfM Technology training centre Aalen or In-house at your plant |
|
| |
|
| |
AfM – Calibration devices and Artefacts for the fast machine tool and CMM calibration /check |
- |

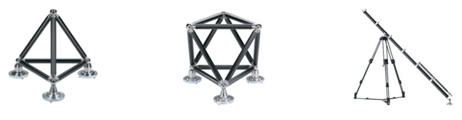

tetronom® / oktonom® - Dismountable DKD-calibrated 3D-artefacts for the machine tool and coordinate measuring machine monitoring / calibration (position / squareness) |
- |
Evaluation by tetronom® Analyzer software |
- |
Fulfills the demands for artefacts according to VDI/VDE 2617 |
- |
Ballbars in various dimensions according to your needs; incl. DKD certificate |
|
|
AfM – Accessories for Laser Tracker Measurements |
- |
Nests – New technology! Mountable without glue or cement – immediate useage |
- |
Multi-PIN Nest – can be used for 1,5“ and 0,5“ reflectors |
- |
Drift Nest – for temporary (by glue), or fixed (by screws) surveying |
|
|
AfM Service Solutions – Mobile 3D Measurements |
- |

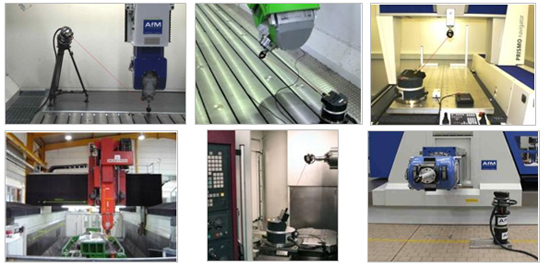

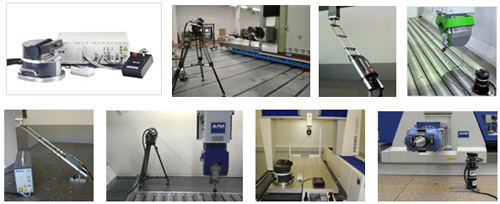

AfM is using the best measuring technology (Laser interferometer, absolute distance systems, angular measuring systems, Laser Trackers from LEICA and FARO, Measuring arms) for the respective task |
- |
Mobile, flexible, fast, worldwide service – Take advantage of our experience! |
|
| |
|
| |
 |
