With RPC 700/1100/1600,  KNM Metrology GmbH -

With RPC 700/1100/1600, R&P Metrology GmbH

Manufacturer of the currently largest gear measuring machines in the world - offers the first universal concentricity measuring equipment for medium and large diameters.

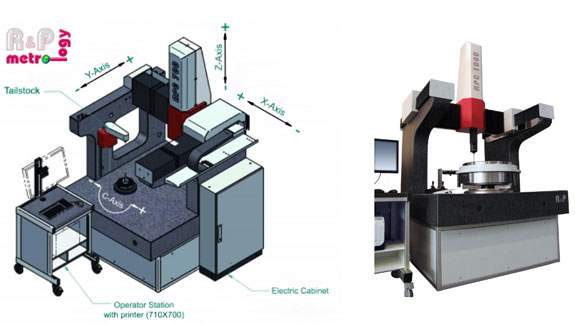

The device is a new development based on well-proven technologies, as well as innovations and has been perfectly adjusted to customer requirements specifically for the determination of form deviations in bearing rings, race rings and cylindrical workpieces.  Its setup as CNC-controlled 4-axis measuring equipment permits expansion to a larger range of parts as well, including gears or 3D measuring tasks on prismatic workpieces. Proven software for fully automatic measuring cycles is available.

The equipment is characterized by the following features :
-- Parts sizes: diameter max. 700/1100/1600, weight max. 50/300/800/1800 daN
-- Highly accurate mechanics in special construction with perfect accessibility
-- Base plate, side parts and axes of dark granite lead to consistent thermal conduct
-- Base plate for vibration insulation supported on controlled air springs
-- Air bearing guide elements in all axes for wear-free and smooth operation
-- Generously sized guide cross-sections
-- Large distances between bearing positions
-- Y-guide risen, drive close to the center of gravity, low dynamic distortions
-- Use of state-of-the-art drive technology (linear motors)
-- Rotary table with air bearing and direct drive
-- Perfect combination between the metrological features of a form measuring devicewith the strengths of a gear measuring   machine respectively coordinate measuring equipment
