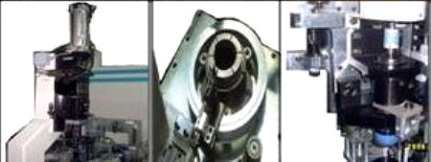

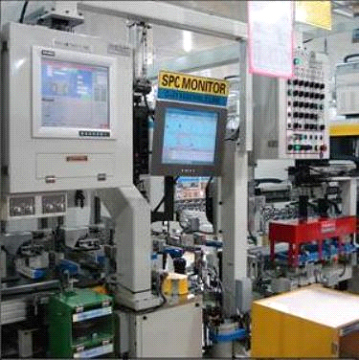

Assembled Bearing Runout Torque Tester


Function

As a in line system, this is the machine for measuring run-out the assembled,
Torque is measured in good parts.
The measurement is performed dynamically and then the part is divided into OK &NA.
OK part shall be fed to the next machine and NA part shall be rejected into NA



Accuracy

1) Ovality <2㎛

Cycle time

2) Cycle time <12 sec
