Portable CNC Pitch testers from Donner + Pfister AG

We are pleased and proud to inform you that Prime Technologies has partnered with Donner + Pfisteras Business partner forPortable Pitch Testers.

Under the partnership Prime Technologies will market & Support D+P products in India.
Thus Indian customers i.e. OEM manufacturer, Vendors, Distributors, Now have an excellent opportunity to upgrade their inspection facilities with world renowned D+P products.
The new portable pitch measuring instrument ES 4100 offers an extremely exact method of measurement based on the principle of chord measurement (comparator method).  A high degree of operational convenience is possible by the built in processing of the measured data and the tilt and swivel display touch-screen.
One Stop solutions for Pitch & Run Out testing of Gears
Diameter can be inspected > 10mm
Easy mode
The quality level of the gear teeth is easily determined by theevaluation software to ISO, DIN or AGMA standards.

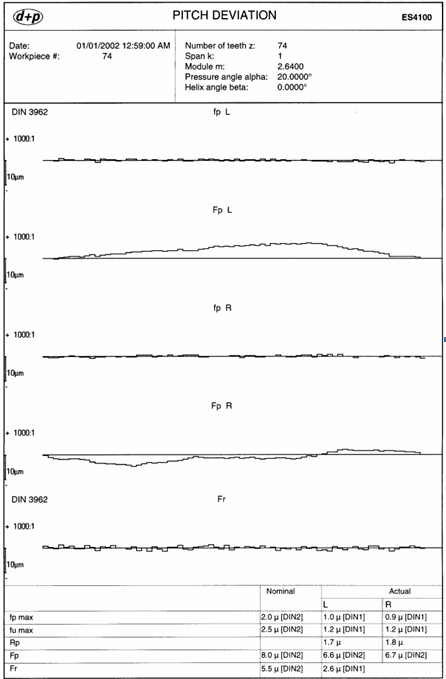

The result of the measurement is displayed immediately by the apparatus itself, and stored.
Can be used in manyproduction locations. Possible to integrate with Production machine.
Measurements are stored automatically in the instrument andcan be recalled via the part numbers identifications.
The records are printed out via wireless printer or via Memorystick.
The measurements can be stored and printed out on an external PC in the form of PDF file.
Permissible measuring uncertainty: 2s range
  Fp: ± 0.1 µm / Guaranteed ± 0.2 µm
Fp: ± 1.0 µm / Guaranteed ± 1.5 µm
Fr: ± 0.2 µm / Guaranteed ± 0.4 µm
