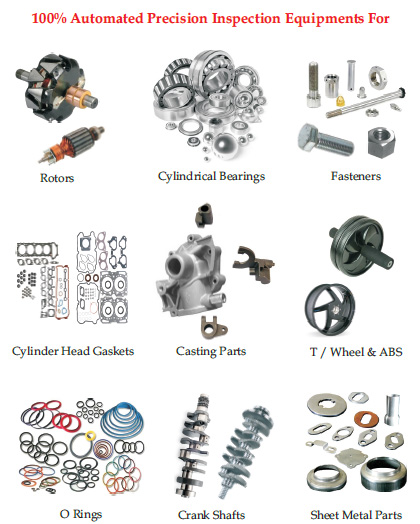

100% Automatic Inspections Machines

Components
Parameters
Fasteners, Bolts
Fasteners, Bolts
• Thread Shape
• Thread Depth
• Missing Threads
• Pitch
• Major & Minor Diameter

Disc Spring
Disc Spring
• Perpendicular height of disc spring
• Width of the spring

O - Rings
O - Rings
• Inner / Outer Diameter
• Pores
• Holes
• Cracks

Auto - Components
Parameters
M.L.S Cylinder Head Gasket
M.L.S Cylinder Head Gasket
• Punched hole detection
• Notches detection

Sheetmetal
Sheetmetal
• Thickness
• Punches
• Holes
• Angles

Crankshaft & Camshaft
Crankshaft & Camshaft
Crankshaft & Camshaft
• Diameters
• Distances
• Concentricity
• Ovality
• Barrel shape
• Taper
• Straightness
• Parallelism
• Radial runout
• Axial runout

Rotor
Rotor
• Thickness
• Parallelism
• Diameters
• Width

Spool
Spool
• External Diameter
• Roundness
• Cylindricity

Bearing
Bearing
• Inner / Outer Race and Diameter
• Bearing Durability
• Rotation Torque
• Bearing Run-out
• Drag Testing
• Noise and Vibration
• Scratch detection

Brake Disc
Brake Disc
• Disc Thickness Variation
• Run-Out
• Diameters
• Grooves measurement
• Parallelism
Casing
Casing
• Diameters
• Roundness
• Cylindricity

Cam Ring
Cam Ring
• Thickness
• Parallelism
• Diameters
• Width

Clutch Facings
Clutch Facings
• Inner / Outer Diameter
• Concentricity
• Ring Width

Tone Wheel
Tone Wheel
• Indentation
• Indentation Height

Wheel Rim
Wheel Rim
• Outer Surface
• Inner Surface
• Cylindricity

Welding Inspection
Welding Inspection
• Weld Seam Inspection
• Weld area

Automobile Plastic Parts - Head lamp, Tail lamp, Turn Indicator, Blinkers
Automobile Plastic Parts
• Surface form
• Void spaces
• Dimensions

Brake Disc Caliper
Brake Disc Caliper
Brake Disc Caliper
• Internal Groove Diameter
• Roundness
• Cylindricity

Valve Collets
Valve Collets
• Inner Diameter
• Outer Diameter
• Taper
• Groove dimensions
• Tab location

Synchro Rings
Synchro Rings
• Gauge Position
• Diameters
• Taper Anglen

Cylinder Liner
Cylinder Liner
• Inner Diameter
• Outer Diameter
• Roughness

Connecting Rod
Connecting Rod
• Bore Diameter
• Roughness
